LG/Vizio 55.42T23.D02 (T320HVN01.1) LED Driver

LG/Vizio 55.42T23.D02 (T320HVN01.1) LED Driver

$56.16
$56.16
Sale Sold out
Shipping calculated at checkout.

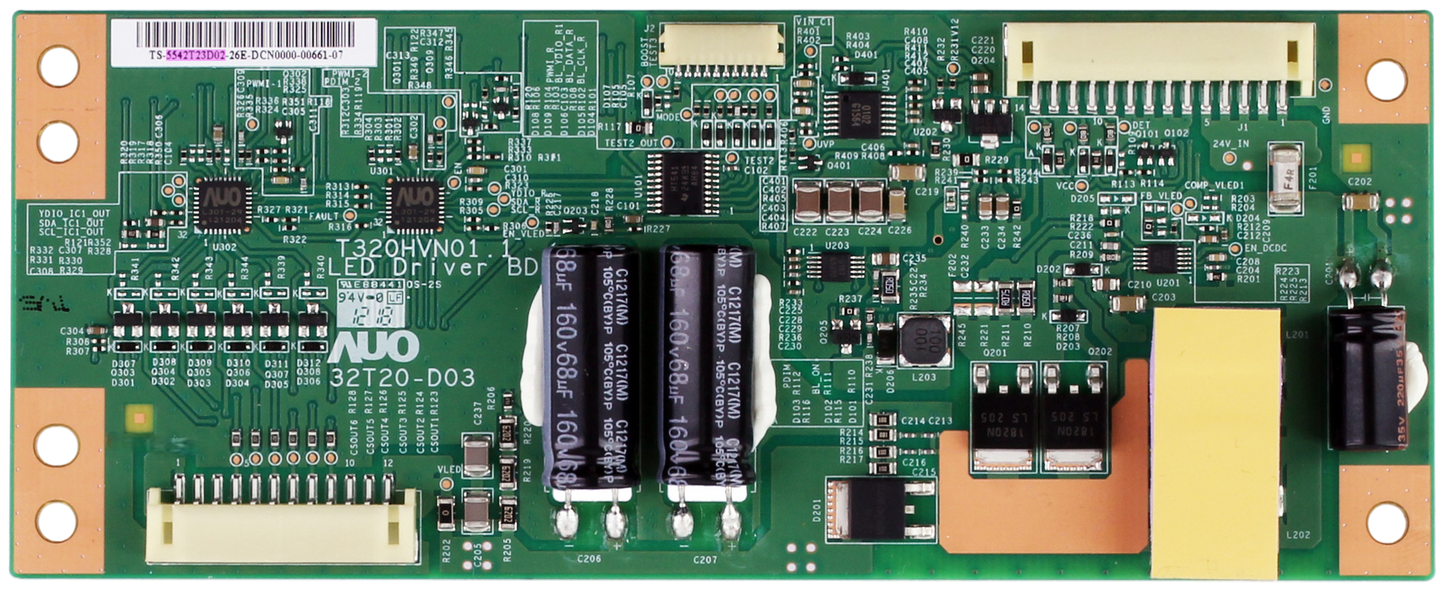

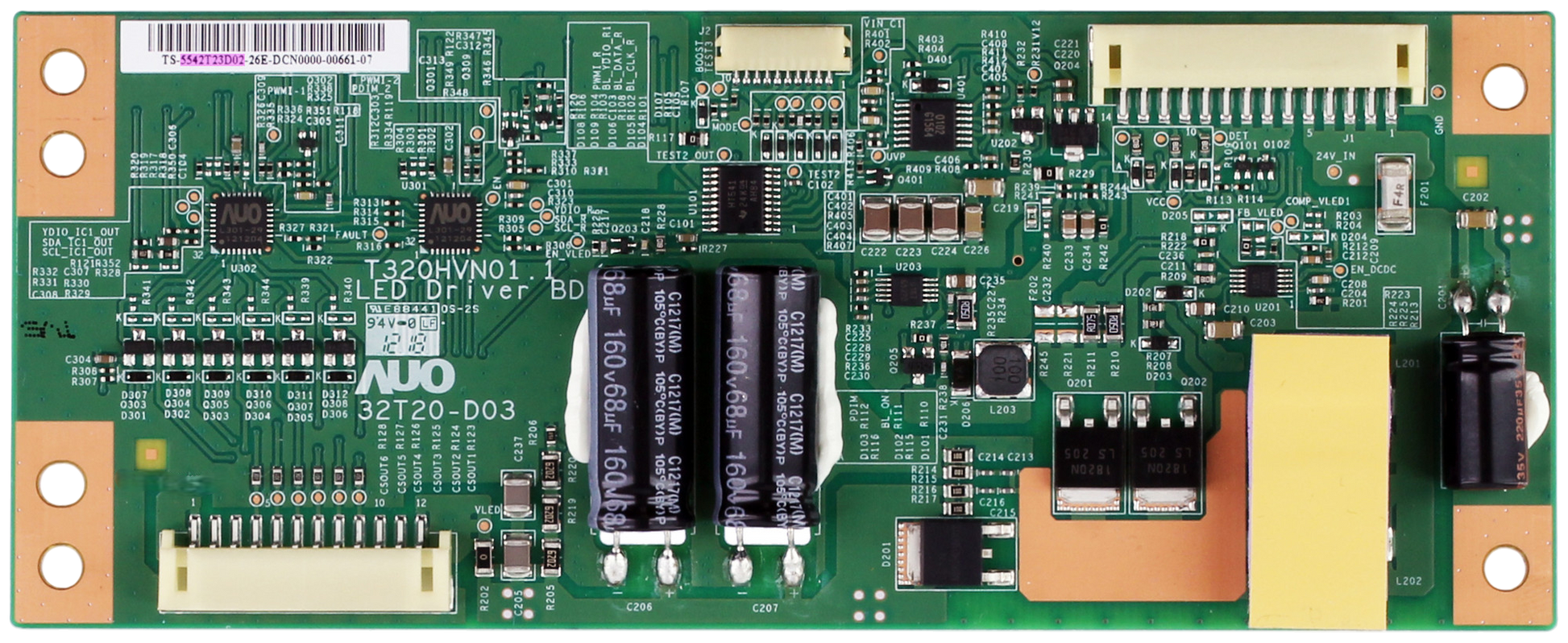

LG / Vizio 55.42T23.D02 (T320HVN01.1) LED Driver Board

Location: 00o5

This replacement LED driver board is designed for LED-backlit LG and Vizio televisions that use part number 55.42T23.D02. The LED driver controls the power and brightness of the backlight strips and is a common replacement when the TV powers on but the screen remains dark, dim, or flickering.

Part & Board Numbers

  • Part Number: 55.42T23.D02
  • Board / Printed Numbers:
    • T320HVN01.1

Always match the part number on your original board. Using the wrong LED driver can result in no backlight or improper operation.

Compatible TV Models

  • LG 42LS5700-UA
  • Vizio M420SL
  • Other models that use 55.42T23.D02 or T320HVN01.1 may also be compatible.

Common Symptoms of a Bad LED Driver

  • TV powers on but the screen is dark
  • Very dim picture or faint image visible only with a flashlight
  • Backlight flickers or fails to stay on
  • Intermittent or uneven brightness

These symptoms can also come from failing LED strips or a power supply. Proper diagnosis is recommended.

Installation & Handling Notes

  • Unplug the TV and allow several minutes for capacitors to discharge before opening it.
  • Use anti-static precautions when handling electronic boards.
  • Carefully reconnect all ribbon cables and harnesses; ensure they are fully seated.
  • Avoid bending the board or applying excessive force to connectors.

Condition & Testing

  • Professionally tested and confirmed fully functional.
  • Guaranteed working replacement for the listed part numbers.

Warranty & Returns

  • Warranty: 180-Day Warranty.
  • Returns accepted for boards that are unmodified, undamaged, and installed properly.
  • Please keep your original board until the repair is confirmed successful.

Shipping

  • Ships from Brighton, TN.
  • Securely packaged for safe transit.
  • Expedited shipping options available at checkout.

If you need help confirming compatibility with your TV model, feel free to contact us before ordering.
