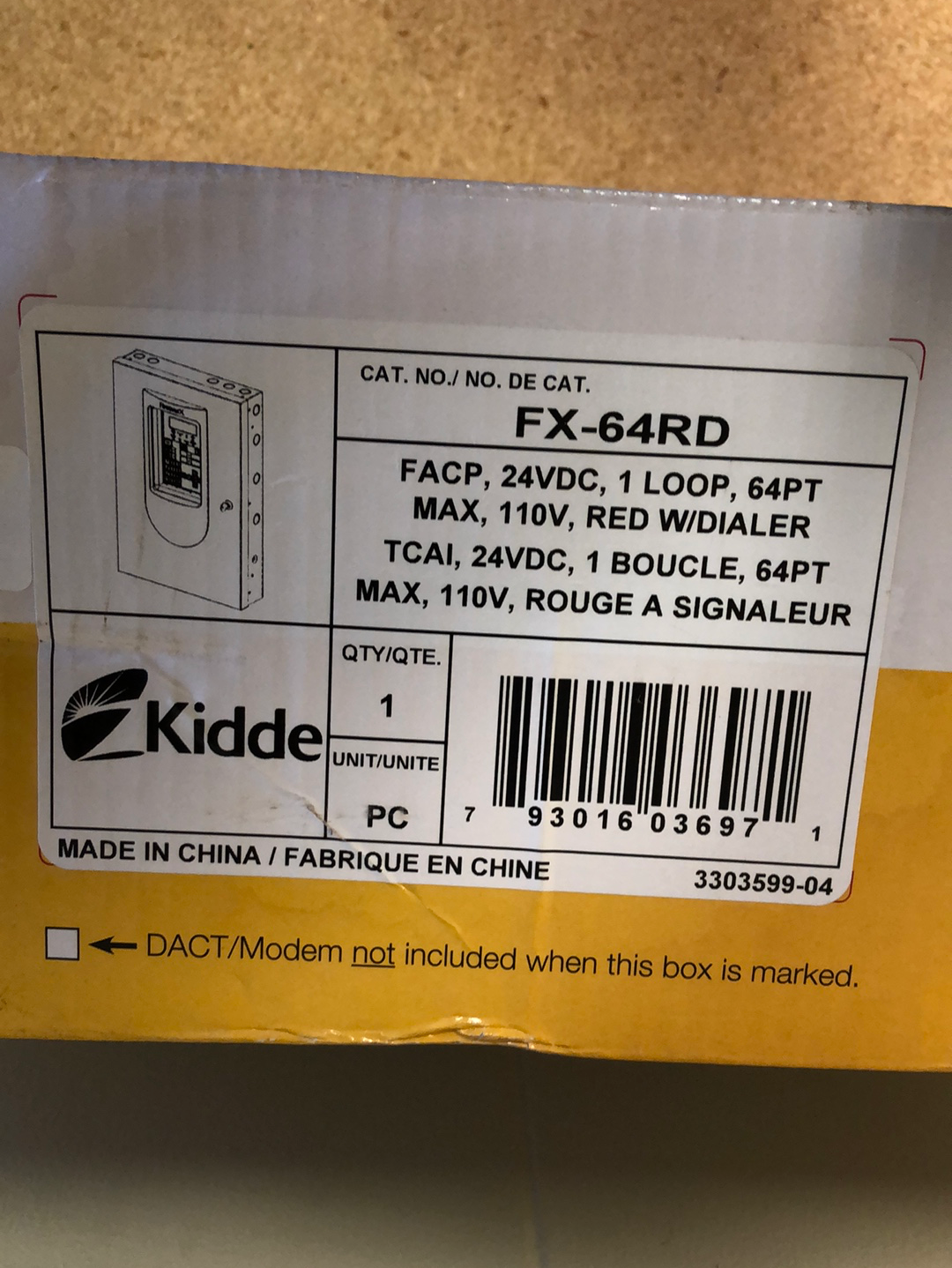

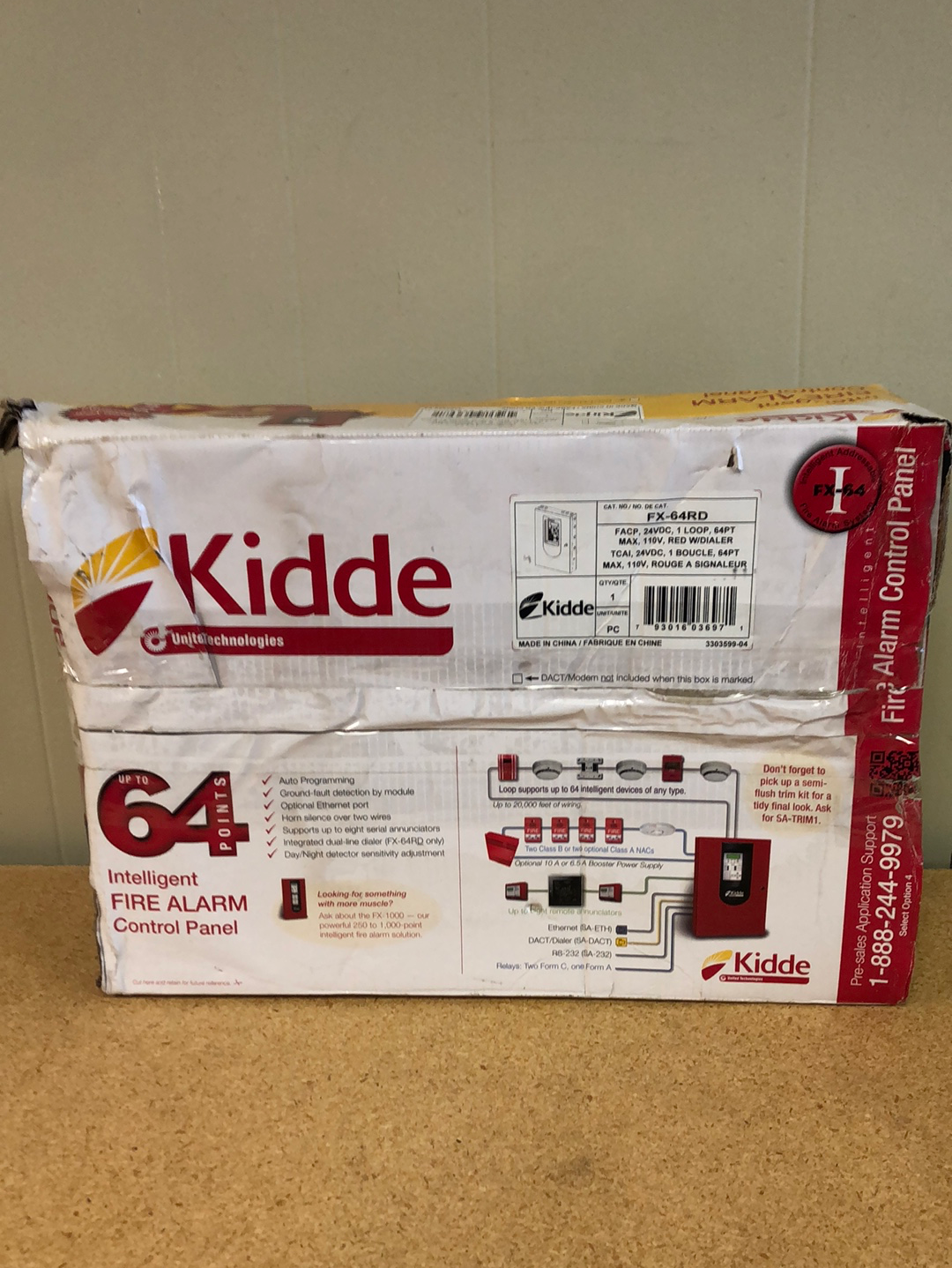

Kidde Security FX64RD Fire Alarm Control Panel FX Intelligent Addressable 64 Points with U/D Dialer 24VDC Red

The FX-64 life safety system is a reliable analog/addressable solution for small to mid-sized buildings. Analog/Addressable Technology delivers the benefits of flexible system installation, while a clean and easy-to-operatate user interface makes panel operation and system maintenance quick and intuitive The inherent fault-tolerant characteristics of Analog/Addressable Technology boosts the reliability of FX-64 systems. When combined with FX Series smoke and heat detectors, this system delivers a level of dependability not previously available for small to mid-sized applications. All FX systems are built to exacting GE reliability benchmarks and meet ISO 9001 standards for quality, in addition to agency listings for dependability. Two fully-programmable front panel switch/LED combinations provide an added measure of flexibility. Their slide-in labels take the mystery out of custom applications, and present a clean finished appearance.

Features
Comes standard with one loop that supports up to 64 intelligent addressable devices of any type and two Class B NACs
Form C contacts for alarm and trouble, Form A for supervisory
Rotary addressing
Optional Ethernet port for diagnostics, programming and a variety of system reports
Two programmable switches with LEDs and custom labeling
Supports horn silence over two wires and UL 1971compliant strobe synchronization
Optional Class A wiring
Supports up to eight serial annunciators, (LCD, LEDonly, and graphic interface).
Can use existing wiring for most retrofit applications
Upload/download remotely or locally
Twolevel maintenance alert reporting
Prealarm and alarm verifi cation by point
Adjustable detector sensitivity
4 x 20 character backlit LCD display
