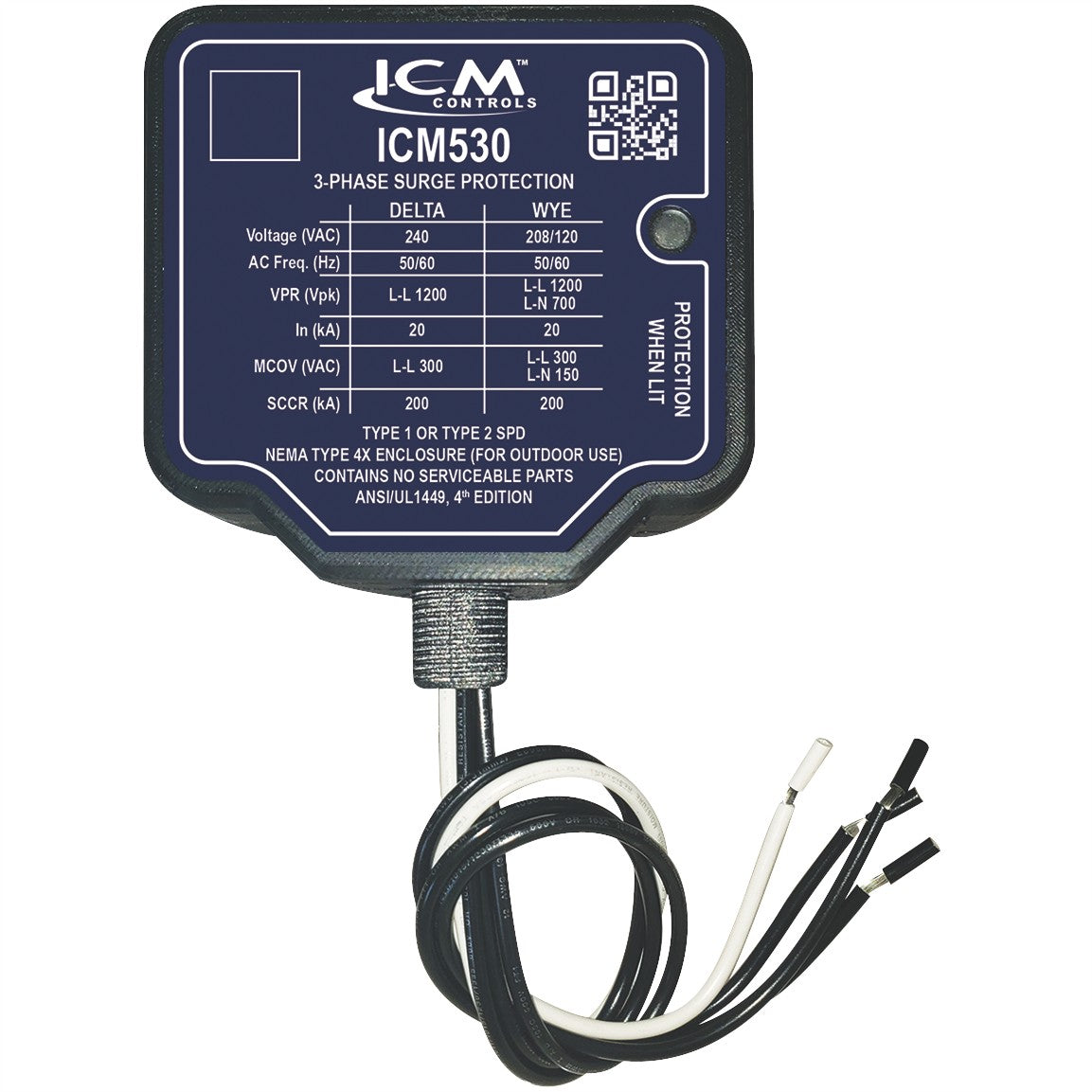

ICM530 3-Phase Surge Protective Device for 240VAC (Delta) or 120/208VAC (Wye)

ICM530 3-Phase Surge Protective Device for 240VAC (Delta) or 120/208VAC (Wye)

$183.55
$183.55
Sale Sold out
Shipping calculated at checkout.

365-Day Warranty!

Part Type: Surge Protector

Part Number: ICM518

Location: 01B3

DETAILS:
3-Phase Surge Protective Device, Delta 240VAC or Wye 120/208VAC
Delta or Wye Configuration
NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
Green LED indicates surge protection present
Easily connects to electrical panel or disconnect for indoor and outdoor applications
UL Listed Type 1 or Type 2 SPD
Limited lifetime product, up to a 3-year $10,000 connected equipment warranty

SPECIFICATIONS:
Service Voltage (3-Phase): 240 VAC Delta or 120/208 VAC Wye
Short Circuit Current Rating (SCCR): 200 kA
Nominal Discharge Current (In): 20kA
Maximum Surge Current: 150,000 amps
Protection Mode:
3 for Delta configuration
6 for Wye configuration (neutral tied to ground)
Maximum Continuous Operation Voltage (MCOV):
L-L: 300 VAC
L-N: (for Wye configuration only): 150 VAC
VPR:
Delta L-L: 1200 VAC
Wye L-L: 1200 VAC
Wye L-N: 700 VAC
SPD Type: Type 1 (can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Input Power Frequency: 50/60 Hz
WEIGHT/DIMENSIONS:

4.30” x 4.10” x 2.30”


Replaces:


ABB: OVRHLDxx-120

ASCO: 420120Y, 420240D

Eaton: SP1-208Y, SP1-240D, SP2-208Y, SP2-240D

ERICO (Critec): TDX50C120/208, TDX50C120/240D

Intermatic: AG2083C3, L5F13Y1DG1

Leviton: 55208-ASA

Siemens: TPS3D, TPS3C

Square D: SDSA2040, SDSA2040D
