Short Circuit Solution

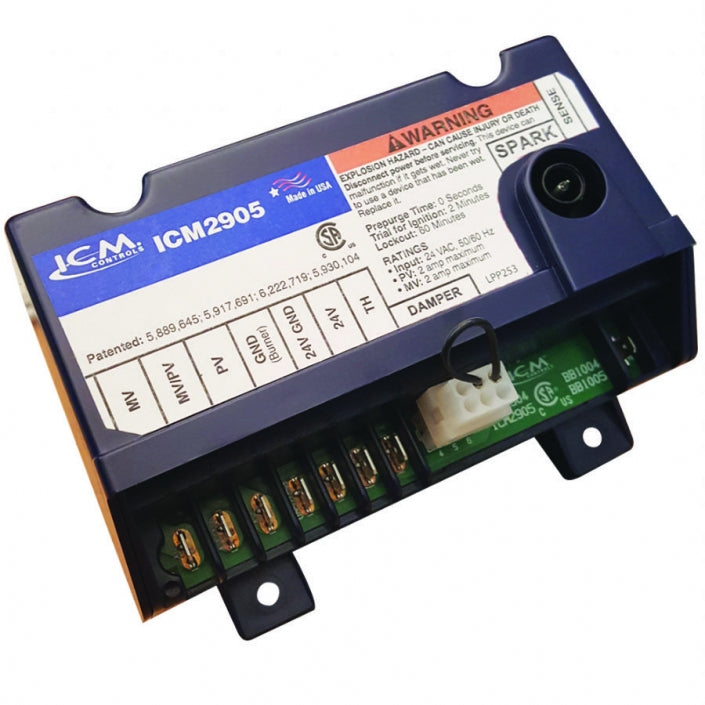

ICM2905 Intermittent Pilot Ignition Control (Replaces Reznor 257010)
ICM2905 Intermittent Pilot Ignition Control (Replaces Reznor 257010)
Couldn't load pickup availability
365-Day Warranty!
Part Number: ICM2905
Location: 01A3
DETAILS:
Reznor OEM Replacement Control
Intermittent pilot gas ignition control module
For use with intermittent pilot boilers, furnaces and other heating appliances
Microprocessor-based
Monitors timing, trial for ignition, flame sensing and lockout
Remote flame sensing
2 minute trial for ignition
60 minute lock out if pilot flame is not sensed in 2 minutes
Compatible with LP or natural gas
Damper control input
SPECIFICATIONS:
Control Voltage: 18-30 VAC
Frequency: 50/60 Hz
Humidity: 5%-95% R.H. (non-condensing) at +55°C
Operating Temperature: -40°F to 165°F, -40°C to 75°C
Pilot Valve: 2A @ 24 VAC
Main Gas Valve: 2A @ 24 VAC
Current Draw: 100 mA maximum
Pre-Purge Delay: 0 seconds
Trial for ignition: 2 minutes
Lock Out Time: 60 minutes
WEIGHT/DIMENSIONS:
Weight: 0.45
Height: 2
Width: 5.3
Length: 4
Replaces:
Reznor: 257010
UTEC: 1097-211
