Short Circuit Solution

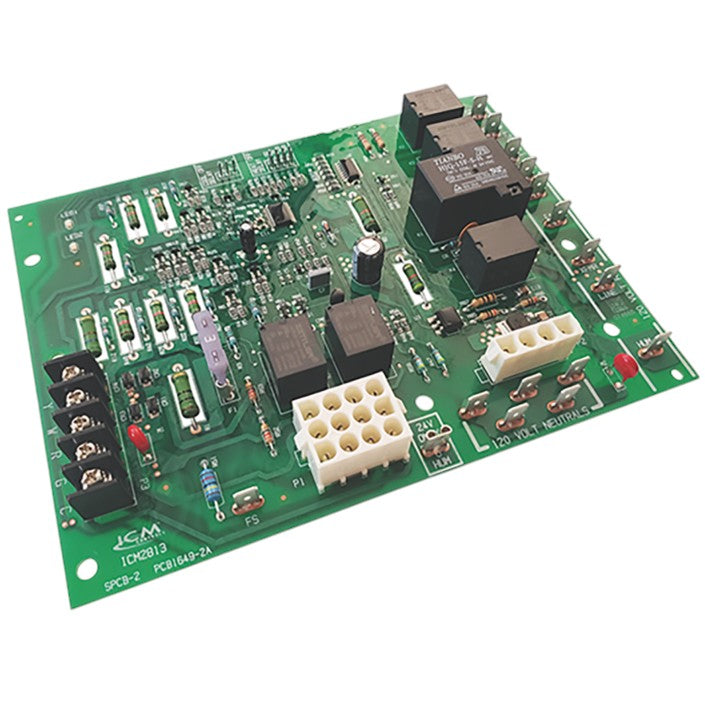

ICM2813 Furnace Control Board

ICM2813 Furnace Control Board

$140.35
$140.35
Sale Sold out
Shipping calculated at checkout.

365-Day Warranty!

Part Type Furnace Control Board

Part Number: ICM2813

Location: 01B3

Description
–
The ICM2813 is a form, fit, and functional replacement for the Lennox SureLight(r) Series Boards and White Rodgers equivalent. The ICM2813 automated gas ignition control board monitors the ignition sequence including the inducer, pressure switch, hot surface igniter, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits. Onboard diagnostics will indicate when a fault condition exists.

Product Features:
Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
Monitors system pressure and limit switches
Microprocessor based precision
Diagnostic LEDs aid in testing and trouble shooting

Product Specifications:
Electrical Rating @ 77°F (25°C)
Input Voltage: 18-30 VAC 50/60 Hz maximum
Igniter Current: 2.0 amp @ 80 VAC 50/60 Hz (resistive)
Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC
Blower Relay: 14.5 FLA–25.0 LRA @ 120 VAC (2spd–H/C)
Gas Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
Operating Temp Range: -40° to 176°F (-40° to 80°C)
Humidity Range: 5 to 95% relative humidity (non-condensing)
