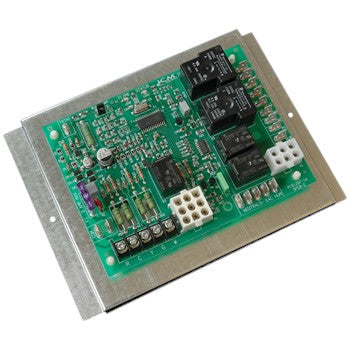

ICM2805A Furnace Control Board
ICM2805A Furnace Control Board
Couldn't load pickup availability
365-Day Warranty!
Part Number: ICM2805A
Location: 01A2
DETAILS:
Low cost form, fit and functional OEM replacement control board for Nordyne: 624631
For use with G3, G4, G5, G6, M2 and M3 furnace modules
Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches
Microprocessor-based precision
Twinning compatible with another ICM2805A furnace control
Diagnostic LEDs aid in testing and troubleshooting
SPECIFICATIONS:
Line Voltage Range: 120/240 VAC @ 60 Hz
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC
WEIGHT/DIMENSIONS:
Weight: 0.4
Height: 1.5
Width: 6
Length: 4.5
Replaces:
Nordyne: 624631, 624631B (for use with G3, G4, G5, G6, M2 and M3 furnace modules)
