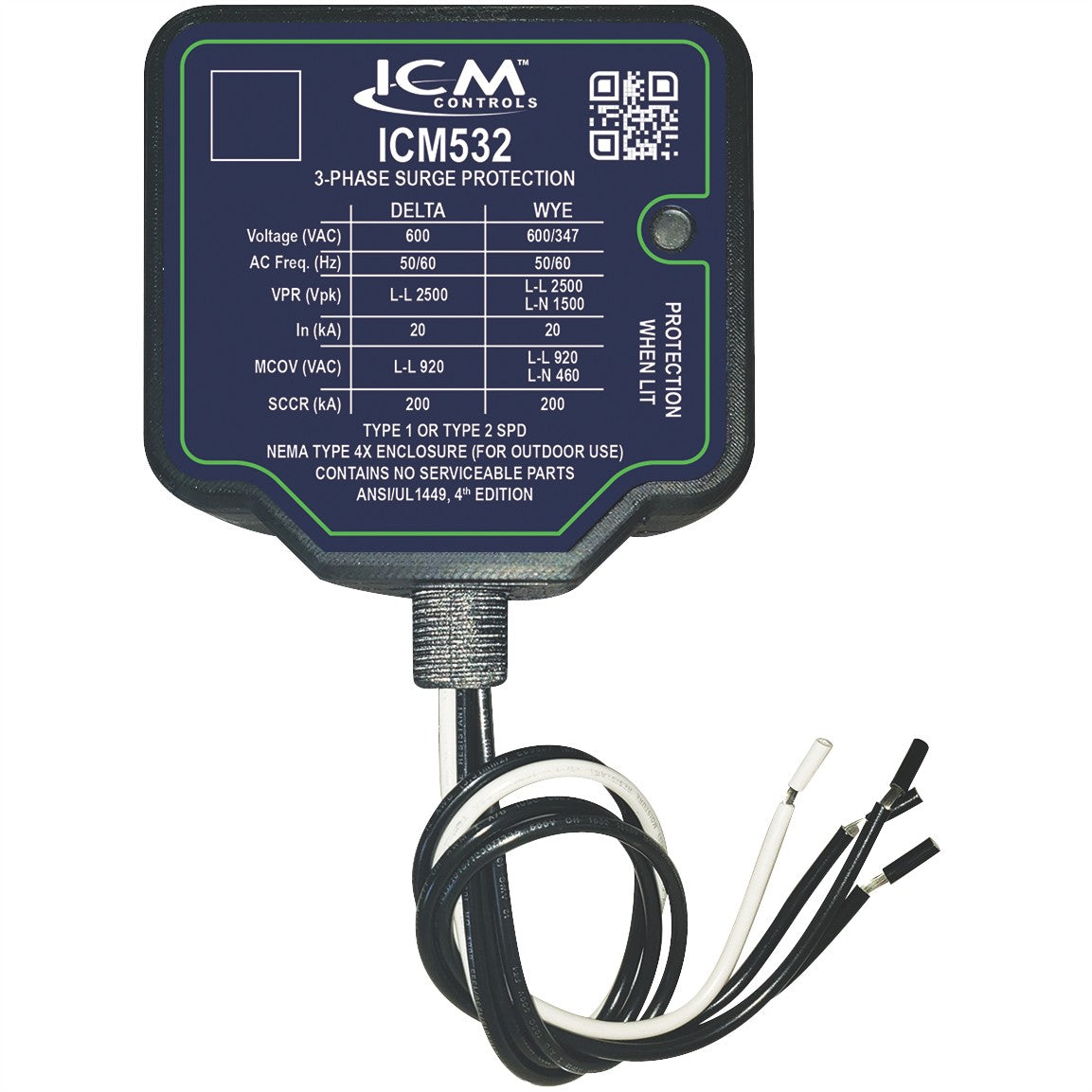

ICM Controls ICM532 3-Phase Surge Protective Device

ICM Controls ICM532 3-Phase Surge Protective Device

$172.75
$172.75
Sale Sold out
Shipping calculated at checkout.

365-Day Warranty!

Part Type:: Surge Protector

Part Number: ICM532

Location: 01C3

DETAILS:
3-Phase Surge Protective Device, 600VAC (Delta) or 347/600VAC (Wye)
Delta or Wye Configuration
NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
Green LED indicates surge protection present
Easily connects to electrical panel or disconnect for indoor and outdoor applications
UL Listed Type 1 or Type 2 SPD
Limited lifetime product, up to a 3-year $10,000 connected equipment warranty

SPECIFICATIONS:
Service Voltage (3-Phase): 600 VAC Delta or 347/600 VAC Wye
Short Circuit Current Rating (SCCR): 200 kA
Nominal Discharge Current (In): 20kA
Maximum Surge Current: 150,000 amps
Protection Mode:
3 for Delta configuration
6 for Wye configuration (neutral tied to ground)
Maximum Continuous Operation Voltage (MCOV):
L-L: 920 VAC
L-N: (for Wye configuration only): 460 VAC
VPR:
Delta L-L: 2500 VAC
Wye L-L: 2500 VAC
Wye L-N: 1500 VAC
SPD Type: Type 1 (can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Input Power Frequency: 50/60 Hz
WEIGHT/DIMENSIONS:

4.30” x 4.10” x 2.30”

Replaces:


ASCO: 420347Y, 420600D

Eaton: SP1-600Y, SP1-600D, SP2-600Y

ERICO (Critec): TDX50C347/600

Intermatic: AG6503, L5F13Y3DG1

Siemens: TPS3L, TPS3G

Square D: SDSA3650, SDSA3650D
