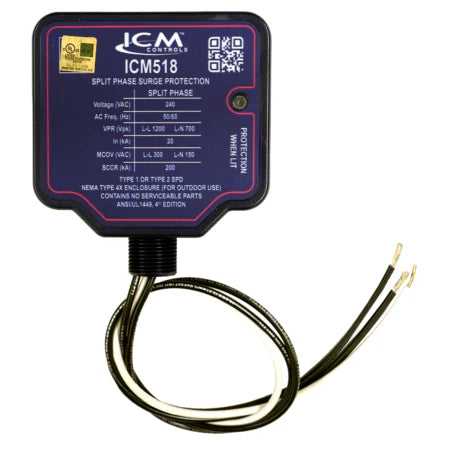

ICM Controls ICM518 240 VAC Split Phase Surge Protective Device w/ 3/4" Conduit Connection, Replaces Eaton SP1-240S

ICM Controls ICM518 240 VAC Split Phase Surge Protective Device w/ 3/4" Conduit Connection, Replaces Eaton SP1-240S

$97.15
$97.15
Sale Sold out
Shipping calculated at checkout.

365-Day Warranty!

Part Type: Surge Protector

Part Number: ICM518

Location: 01A3

Split Phase Surge Protective Device
The ICM518 is a UL Listed Whole-Home Surge Protective Device for 240 VAC Split-Phase configurations designed to protect a dwellings most valuable assets. It can be installed as a Type 1 (whole-home) or a Type 2 Surge Protective Device. Type 1 applications include installations before a service entrance or utility meter. Type 2 applications include installations after service entrances protecting particular equipment. The ICM518 has a NEMA Type 4X waterproof rated enclosure that is suitable for both indoor and outdoor use.

DETAILS:
240 VAC Split Phase Surge Protective Device
Type 1 or Type 2 Whole Home SPD
Easy 3-wire installation
3/4” conduit connection
Maximum Surge Current: 100 kA
Green LED indicator tells whether the device is operational
Low cost, high performance
Rugged and reliable
UL Listed
NEMA Type 4X watertight enclosure for indoor/outdoor use
Surge protection technology: Thermally protected MOVs (TFMOV)
Limited lifetime product, up to a 3-year $10,000 connected equipment warranty

SPECIFICATIONS:
Service Voltage: Split Phase 240 VAC
Short Circuit Current Rating (SCCR): 200 kA
Nominal Discharge Current (In): 20 kA
Maximum Surge Current: 100,000 amps
SPD Type: Type 1 (Can also be used in Type 2 applications)
Surge Protection Technology: TFMOV
Protection Mode: L1-L2, L1-N, L2-N
L-L: 300VAC
L-N: 150VAC
Input Power Frequency: 50/60 Hz
WEIGHT/DIMENSIONS:
4.30” x 4.10” x 2.30”

REPLACES:
ASCO: 420120S

Eaton: SP1-240S, SP2-240S

ERICO (Critec): TDX50C240

Generac: G0073000

Intermatic: AG2401C3, IG1200RC3, IG1240RC3, IG3240RC3

Leviton: 55240-ASA

MARS: 83905

Siemons: TPS3A
