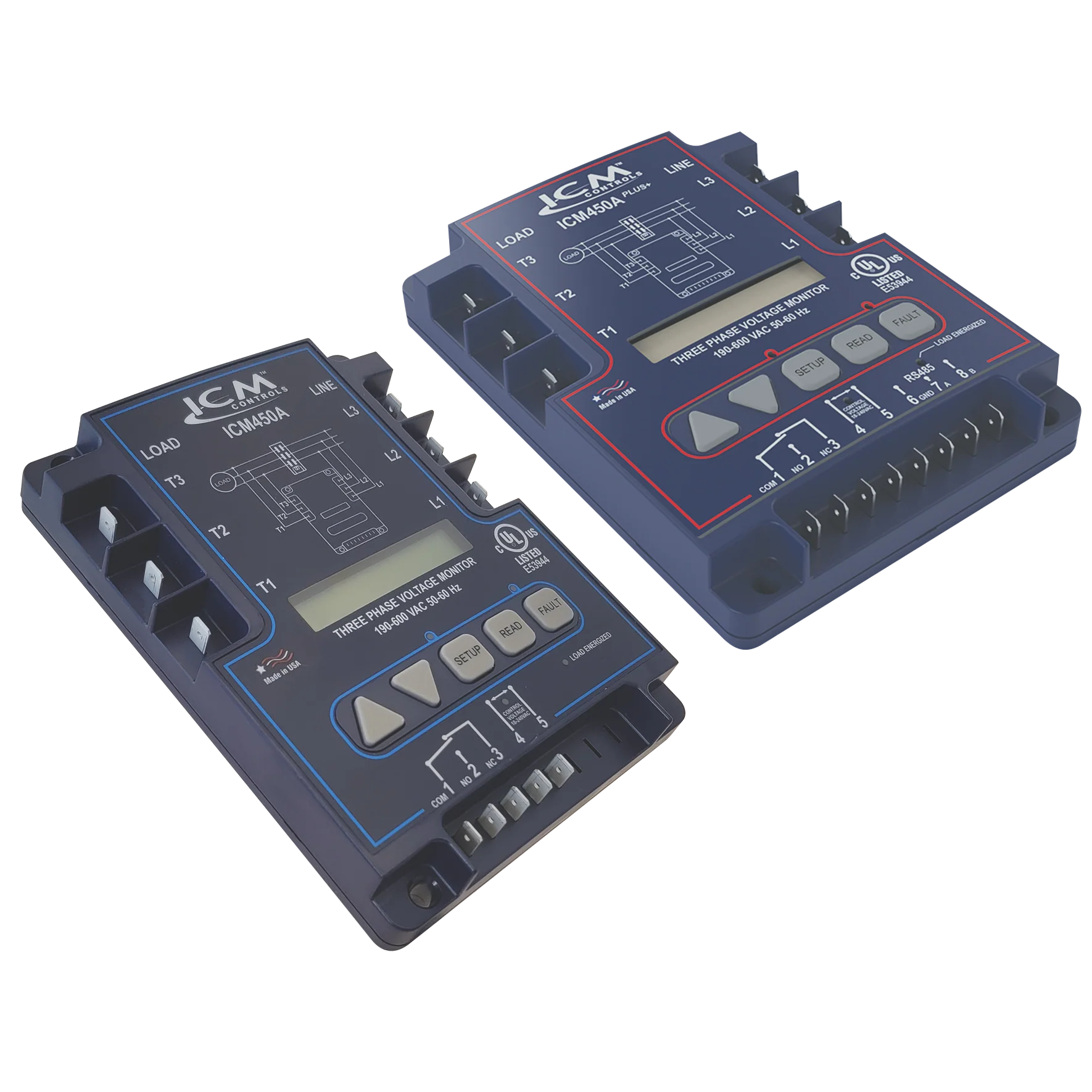

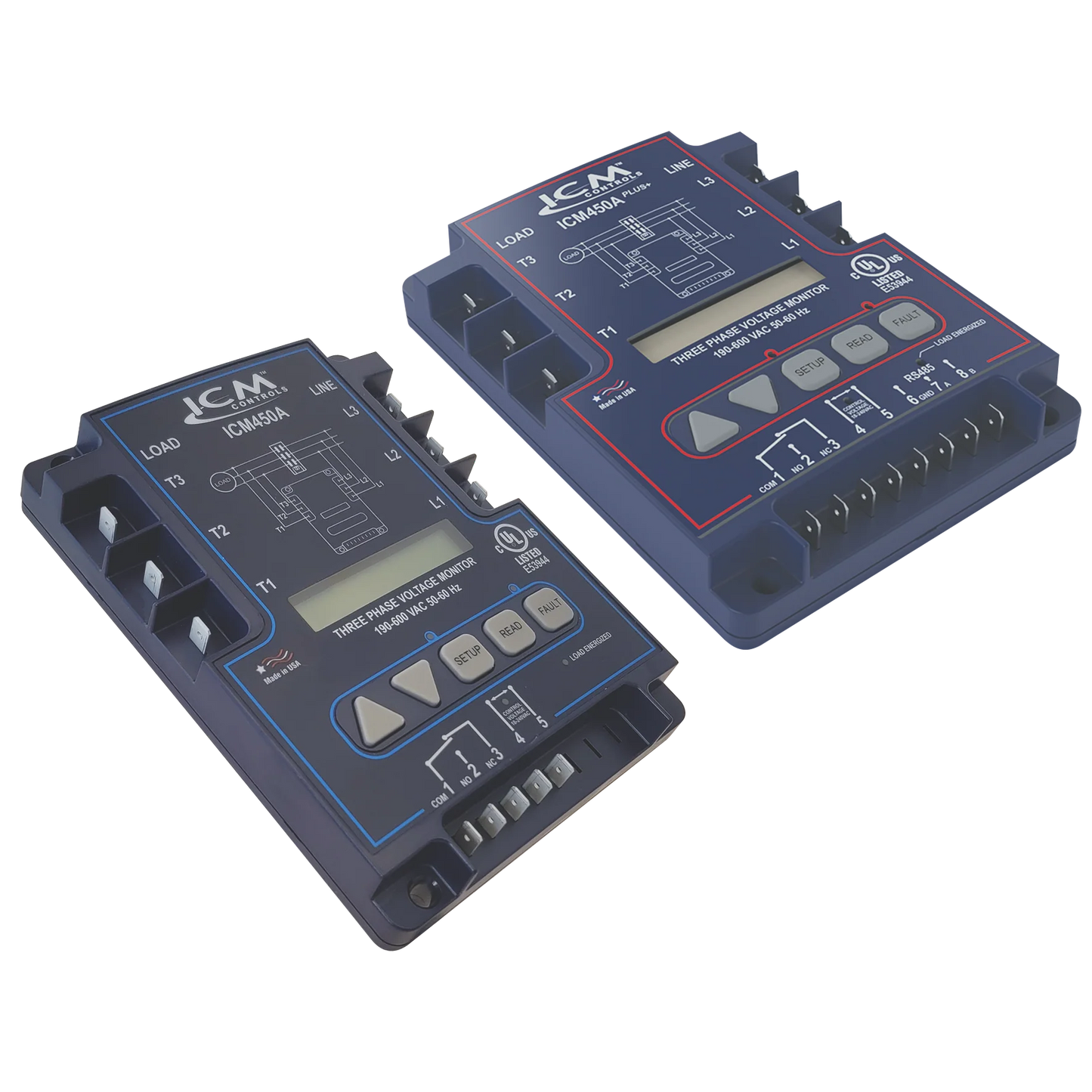

ICM Controls ICM450A 3 Phase Line Voltage Monitor - Delay on Break Timer, 0-10 Minutes (English & Spanish)
ICM Controls ICM450A 3 Phase Line Voltage Monitor - Delay on Break Timer, 0-10 Minutes (English & Spanish)
Couldn't load pickup availability
365-Day Warranty!
Part Type: Motor Protection Controls
Part Number: ICM450A
Location: 01B3
DETAILS:
PROGRAMMABLE 3-PHASE LINE VOLTAGE MONITOR
Backlit LCD
Simultaneous 3-phase true RMS voltage monitoring
Factory calibrated
3-phase voltages simultaneously displayed on LCD
Fault memory
Fault monitoring: High / low voltage, voltage unbalance, phase loss, phase reversal
Real time clock, date and time stamped events (ICM450A+PLUS)
Simple configuration
Fully adjustable variables
Modbus RS485 communications (ICM450A+PLUS)
LED indicators
Common ¼” quick connect terminations
English or Spanish menu options
SPECIFICATIONS:
Input:
• Voltage Range: Universal 190 – 600 VAC
• Frequency: 50-60 Hz
• Load Side Monitoring: Optional
• Control Voltage: 18 – 240 VAC
Output:
• Type: Relay, SPDT
• Voltage Range: 277 VAC @ 10A maximum
Control Operating Temperature:
• Operating Temperature: -40ºF to +149ºF (-40ºC to +65ºC)
• Storage Temperature: -40ºF to +185ºF (-40ºC to +85ºC)
Mechanical:
• Mounting: Surface mount using (2) #8 screws
• Terminations: 1/4” quick connects
• Weight: 12 ounces (341 grams)
• ModBus: RS485 Communication (ICM450A plus+)
Ordering Information:
• ICM450A: Supersedes ICM450
• ICM450A PLUS+: Supersedes ICM450, ICM455
WEIGHT/DIMENSIONS:
6.5”L x 4.75”W x 1.09”D
REPLACES:
A-1: EAC-800, EAC-8000, EAC-8002
Copeland: 085-0160-00
Diversified: AC-2020, AC-301, AC-302
ICM: ICM450, ICM 450S
Mars: PFM-2000
Motorsaver: 455
SSAC: QLM/QLV
Time Mark: 265
Wagner / DiversiTech: DTP-3, WPC-800
