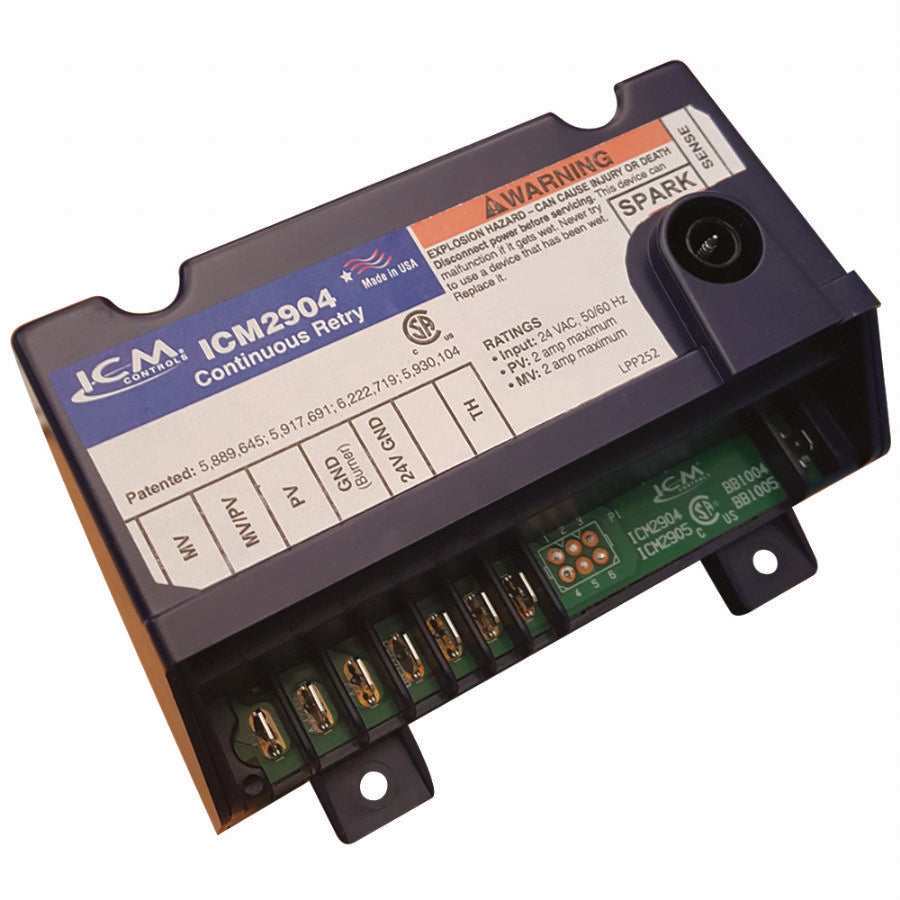

ICM Controls ICM2904 Intermittent Pilot Ignition Control (Replaces Reznor 257009)
ICM Controls ICM2904 Intermittent Pilot Ignition Control (Replaces Reznor 257009)
Couldn't load pickup availability
365-Day Warranty!
Part Type: Ignition Control Board
Part Number: ICM2904
Location: 01B3
(Processing Delay Possible - Will Ship in 2-5 business days)
DETAILS:
REZNOR OEM REPLACEMENT CONTROL
Intermittent pilot gas ignition control module
For use with intermittent pilot boilers, furnaces and other heating appliances
Microprocessor-based
Remote flame sensing
Compatible with LP or natural gas
Brown out monitoring
SPECIFICATIONS:
Control Voltage: 18-30 VAC
Frequency: 50/60 Hz
Pilot Valve: 2A @ 24 VAC
Main Gas Valve: 2A @ 24 VAC
Current Draw: 100mA maximum
Pre-Purge Delay: 0 seconds
Operating Temperature: -40°F to 167°F,-40°C to 75°C
Humidity: 5%-95% R.H. (non-condensing) at +55°C
WEIGHT/DIMENSIONS:
Weight: 1
Height: 2
Width: 5.3
Length: 4
REPLACES:
Reznor: 257009
UTEC: 1003-638A
