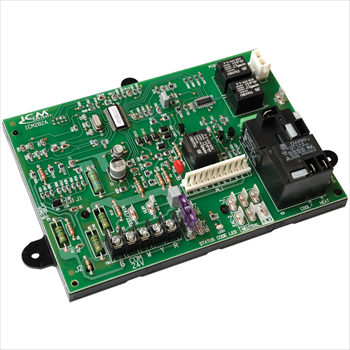

ICM Controls ICM282B Fixed Speed Furnace Control Module w/ Software for Enhanced Controls

ICM Controls ICM282B Fixed Speed Furnace Control Module w/ Software for Enhanced Controls

$215.95
$215.95
Sale Sold out
Shipping calculated at checkout.

365-Day Warranty!

Part Type: Furnace Control Board

Part Number: ICM282B

Location: 01B3

NOTICE: (Processing Delay Possible - Will Ship in 2-5 business days)

DETAILS:
The ICM282B is a low cost, Carrier OEM Replacement Furnace Control Board.

Popular replacement for Carrier HK42FZ004/007/008/009/011/013/016/034
Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
Microprocessor-based
Designed for 100% gas shutoff in case of ignition failure
Twinning compatible with other ICM282B boards
Reverse polarity protection
Secondary brownout voltage protection
Compatible with a 24 VAC standard thermostat
Provides diagnostic LED to aid in troubleshooting

SPECIFICATIONS:
• Voltage Range: Line (98 to 132 VAC) @ 60 Hz
• Ignitor: 5A @ 120 VAC
• Cool Blower: 10A @ 120 VAC
• Heat: 5A @ 120 VAC
• Inducer Motor: 4A @ 120 VAC
• Gas Valve: 1.5A @ 24 VAC
• Humidifier: 0.5A @ 24 VAC maximum
• Electric Air Cleaner: 1A @ 120 VAC
WEIGHT/DIMENSIONS:
Weight: 0.55
Height: 1.5
Width: 8
Length: 5

REPLACES:
Carrier: CEBD431012-01A, CEPL131012-01, HK42FZ004, HK42FZ007, HK42FZ008, HK42FZ009, HK42FZ011, HK42FZ013, HK42FZ016, HK42FZ034 and 325878-751
