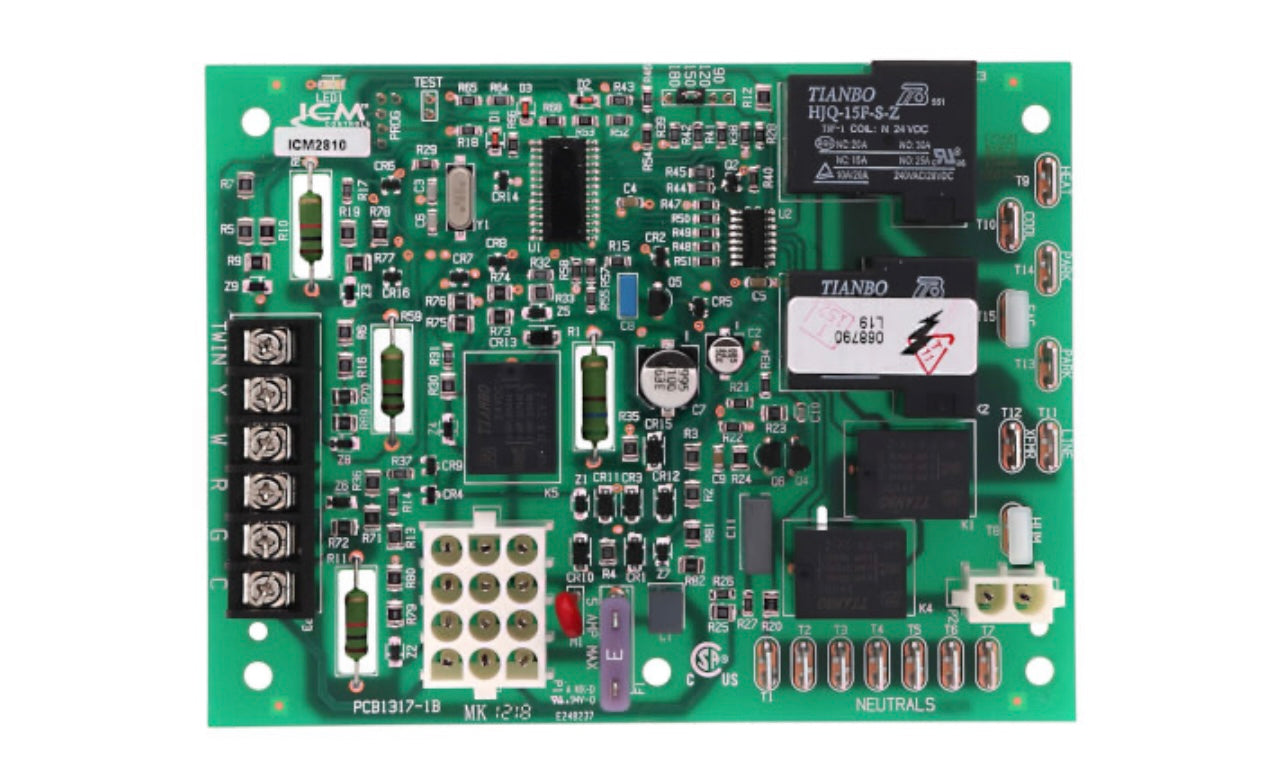

ICM Controls ICM2810 Furnace Ignition Control Board for Goodman PCBBF136 and PCBBF140
ICM Controls ICM2810 Furnace Ignition Control Board for Goodman PCBBF136 and PCBBF140
Couldn't load pickup availability
365-Day Warranty!
Part Number: ICM2810
Location: 01A3
Notice: The ICM2810 is a low cost replacement for the Goodman PCBBF136 and PCBBF140 furnace control boards which is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.
DETAILS:
Low cost, Goodman replacement board
Microprocessor-based precision
Controls inducer and blower fan motors, hot surface igniter, and gas valve
Monitors timing, trial for ignition, flame sensing, pressure switches, limit switches
Designed for 100% gas shutoff in case of ignition failure
Reverse polarity protection
Compatible with 24 VAC standard thermostat
Twinning compatible with another ICM2810 control board
Compatible with LP or natural gas
Provides diagnostic LED to aid in testing/troubleshooting
SPECIFICATIONS:
Pre-purge Time: 15 seconds
Igniter Warm Up Time: 18 seconds
Post-Purge Time: 15 seconds
Total Trials for Ignition: 3 (auto rest after 1 hour)
Heat Blower On: 30 seconds
Heat Blower Off: Selectable 90/120/150/180 seconds
Fan (Heat) On/Off Delay: 1 second
Cool On: 5 seconds
Cool Off: 45 seconds
WEIGHT/DIMENSIONS:
Weight: 0.5
Height: 1
Width: 6
Length: 4.5
REPLACES:
Goodman: PCBBF136, PCBBF140
