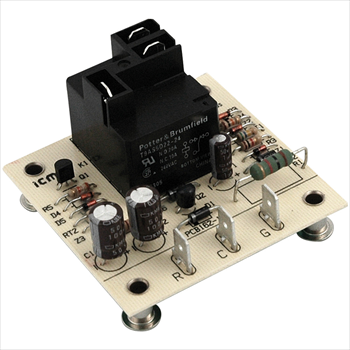

ICM Controls ICM255 Fan Blower Control - Dual On/Off Delay Timer (Fixed Time Delay)

ICM Controls ICM255 Fan Blower Control - Dual On/Off Delay Timer (Fixed Time Delay)

$37.75
$37.75
Sale Sold out
Shipping calculated at checkout.

365-Day Warranty!

Part Type: Fan Blower Control

Part Number: ICM255

Location: 01B3

DETAILS:
Low cost open board design
High power, relay output
Dual function fan delay timer
Controls the circulating fan in heat pump, A/C and forced air systems
OFF delay purges ducts of residual air
ON delay allows air to reach the proper comfort level prior to energizing the fan

SPECIFICATIONS:
Input:
– Voltage: 18-30 VAC
Output:
– N.O.: 20 amps @ 240 VAC
– N.C.: 20 amps @ 240 VAC
Fixed Time Delays:
– ON: 1 second
– OFF: 60 seconds
WEIGHT/DIMENSIONS:
Weight: 0.2
Width: 2.5
Length: 2.5

REPLACES:
A-1: 5893

Bard: 8201-056

Mars: 32574

Rheem: 42-22515-01, 42-22515-02, 42-22515-03

Snyder General/ICP: 1395336
