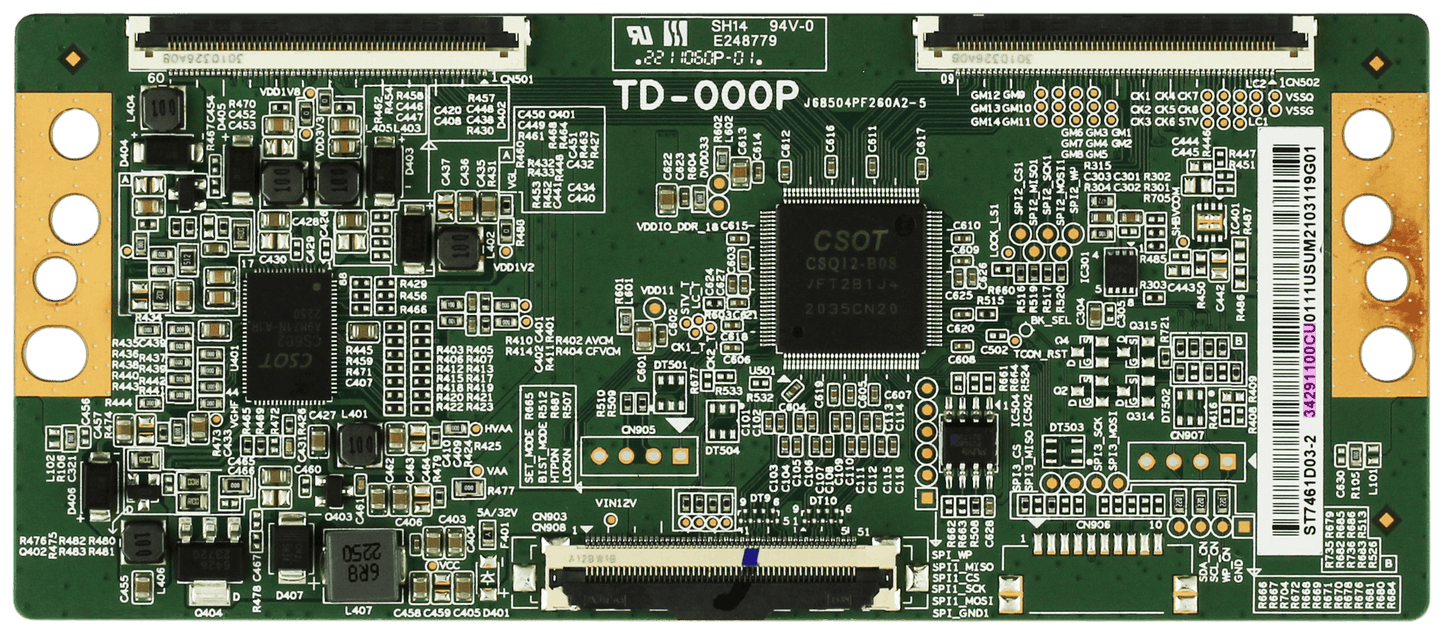

Amazon 34.29110.0CU T-Con Board

Amazon 34.29110.0CU T-Con Board

Location: 00i5

This T-Con (timing control) board is used to manage and translate the video signal from the television’s main board to the display panel. It’s essential for proper image timing and pixel drive — if your TV powers on but shows no picture, half screen, or screen distortion, this may be the part you need.

Part & Board Numbers

• Part Number: 34.29110.0CU

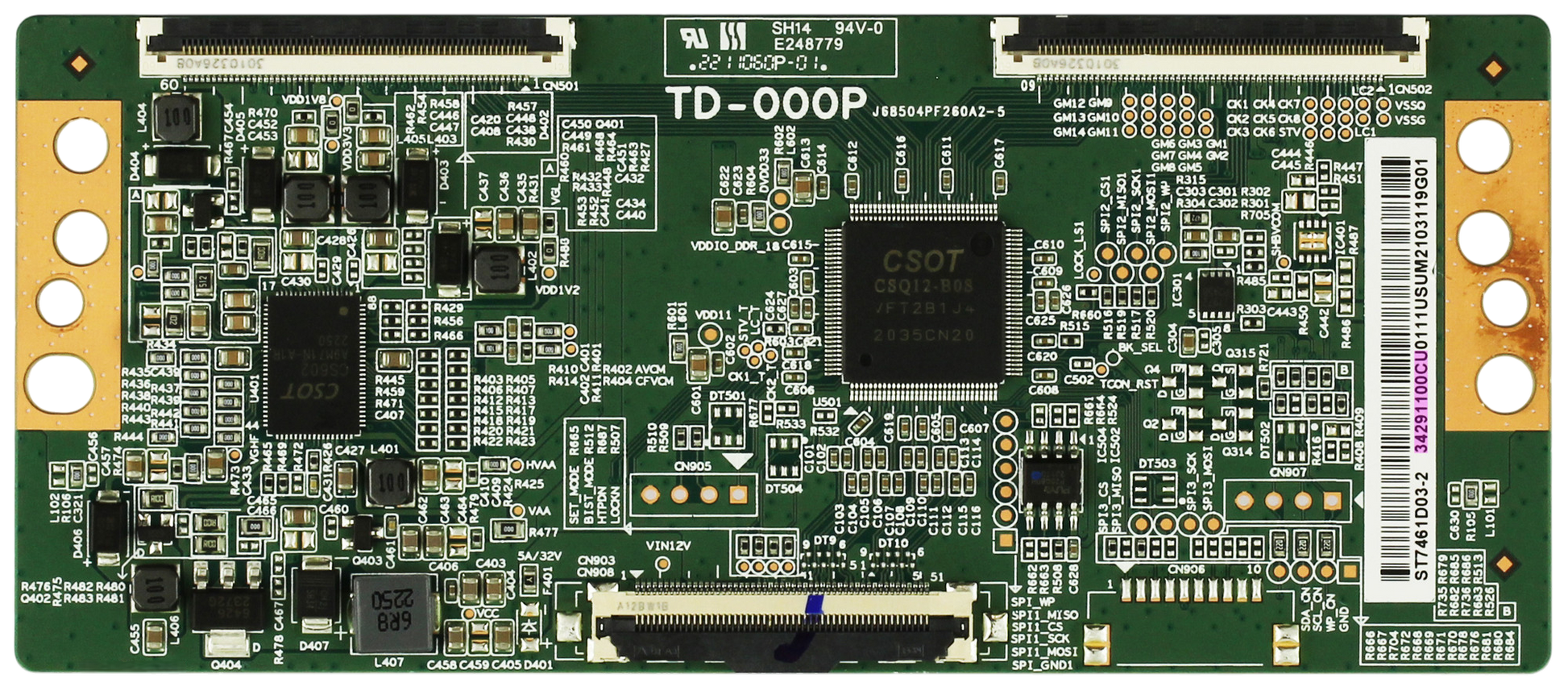

• Board / Printed Numbers (visible on board):
  • 34.29110.0CU
  • ST7461D03-2
  • TD-000P (or similar identifying code)

Important: Always match the part number printed on your original T-Con board — identical TV model numbers may use different panel or board revisions. Ordering by the part number ensures correct compatibility.

Compatible TV Model(s)

• Amazon QL75F601A

This board is intended for use in TVs that require 34.29110.0CU — verify your unit’s board label before ordering.

Common Symptoms of a Bad or Failing T-Con Board

• No video or black screen despite TV powering on
• Half-screen, blank segments, or missing image on part of screen
• Flickering screen, lines, or distorted image display
• Sound may still work — but video output is erratic or missing entirely

Installation & Handling Instructions

• Unplug the TV and wait several minutes before opening — allow internal capacitors to discharge.
• Use anti-static precautions when handling circuit boards and internal components.
• Carefully disconnect and reconnect all ribbon cables and connectors; ensure they are fully seated and aligned properly.
• Avoid bending the board or applying excessive force — T-Con ribbon cables are fragile and can be easily damaged.

Condition & Testing

• Professionally inspected and tested for correct functionality.
• Guaranteed working replacement board for the part number listed above.

Warranty & Returns

• Warranty: 180-Day Warranty.
• Returns accepted only if board is unmodified, undamaged, and properly installed.
• Please retain your original board until the repair is confirmed successful.

Shipping & Handling

• Ships from our facility in Brighton, TN (per standard ship-from location).
• Secure packaging to protect the board during transit.
• Expedited shipping options available at checkout.

If you’re unsure whether this is the correct T-Con board for your TV — please double-check the part number on your unit before ordering to avoid compatibility issues. We’re happy to help verify if needed.
